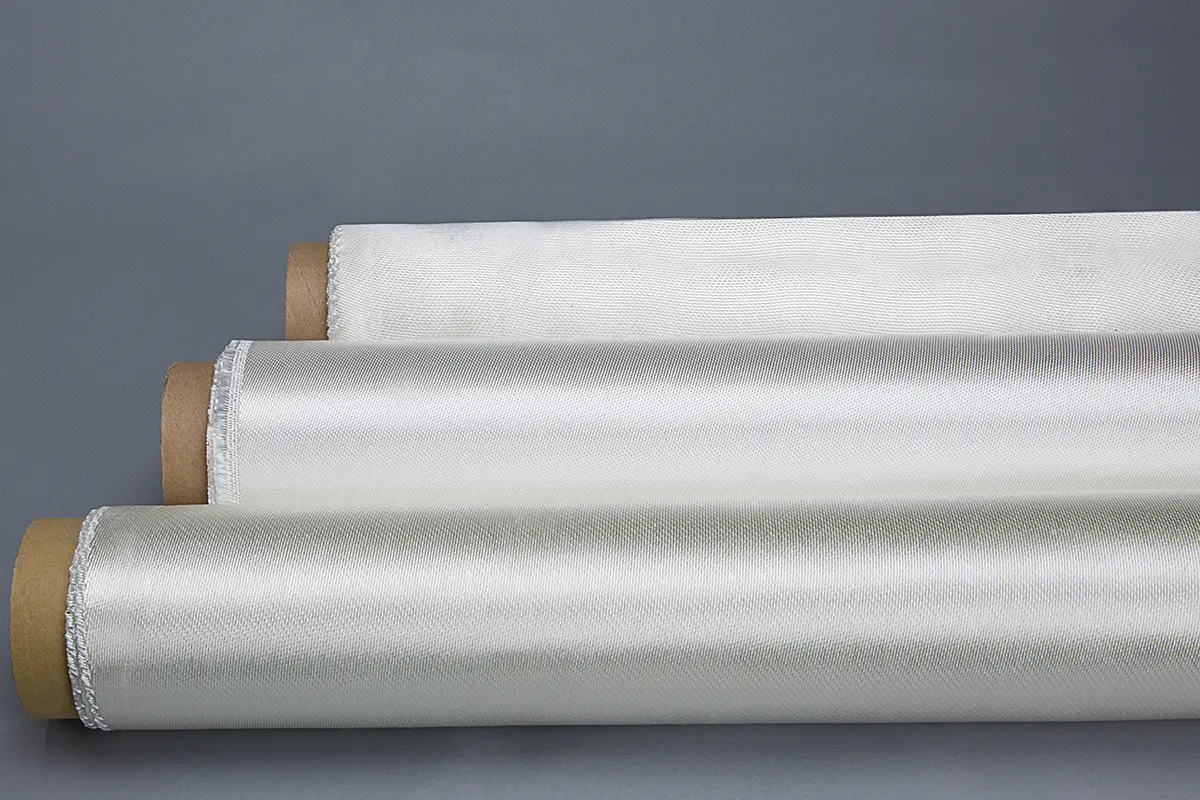

High Silica Fiberglass Fabric

High Silica Fiberglass Fabric has properties of high strength, wide range of application and good processing, extensive used itthe area of high temperature, insulation, sealing and ablation resistant material. The range of thickness is 0.05mm-1.5mm, therange of width is 80cm-155cm, weave in plain or twill or satin, and coating is avallable by customer’s demands.

We have high silica fiberglass products available in forms of fabric, scrim, filtration for foundry, needed mat, staple yarn, chopped strand, cord, tape, sleeve, fire blanket etc.

CONTACT US
High Silica Fiberglass

About High Silica Fiberglass Fabric

Our factory provides free High Silica Fiberglass Fabric samples with a size within 2 meters and a width of 1050mm or 1270mm.

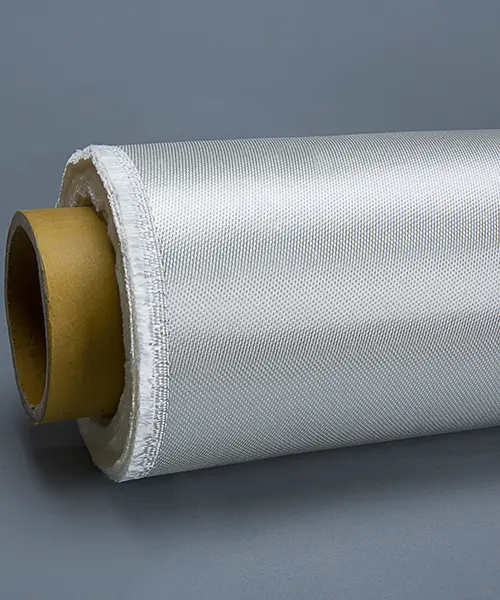

High Silica Fiberglass Cloth

What is High Silica Fiberglass Fabric？

High Silica Fiberglass Fabric is a type of fiberglass material that is characterized by its high silica content. It is made from glass fibers with a high concentration of silica, which gives it exceptional heat resistance properties. High silica fiberglass is known for its ability to withstand extremely high temperatures, making it suitable for use in applications where heat and fire resistance are critical, such as in insulation for industrial furnaces, foundries, and high-temperature equipment. Here are some of its advantages:

  • SiO2≥96%
  • Soft point nearty 1700 ℃, long-period service at 900 ℃
  • Low thermal oonductivity
  • Cood cherical stability
  • Good electrical insulation
  • Low thermal shrinkage
  • Non-asbestos product without pollution
  • Good process performnanoe

Technical indexes of High Silica Fiberglass Fabric

Style Thickness
mm		 Width
cm		 Weight
g/m2		 Breaking strength
N/25x100mm		 SiO₂
content
%		 LOI
%		 Execute
standard
Warp Weft
PTS 100 0.10土0.01 82 87土8 ≥70 ≥50 ≥96 ≤3 Q/SHT 008
PTS 260 0.26土0.026 82/100 240土20 ≥290 ≥190 ≥96 ≤3 GJB 1873-94
PTS 600 0.65土007 85/123 600+40/-25 ≥550 ≥450 ≥96 ≤3 Q/SHT 008
PTS 1250 1.35土0.14 85/145 1250+80/-50 ≥800 ≥500 ≥96 ≤3 Q/SHT 008
Fiberglass Fabric Application

High Silica Fiberglass Fabric Application

It is a material made from high-purity silicate glass fibers. Because it can withstand high temperatures and has excellent electrical insulation, corrosion resistance, and thermal stability, it has extensive applications in various fields.

  • Aerospace: Due to its exceptional heat resistance and thermal insulation capabilities, it is used as insulation materials and components for rockets and airplanes.
  • Electronics: Serves as insulation for cables and wires under high temperatures, such as in generators and transformers.
  • Chemical Processing: Used as a filtering material under high-temperature conditions, for instance, for filtering molten glass.
  • Welding: Used as welding blankets and curtains to protect the surrounding areas from sparks and molten metal splatter.
  • High Silica Fiberglass Fabric Application-1
  • High Silica Fiberglass Fabric Application-2
  • High Silica Fiberglass Fabric Application-3
  • High Silica Fiberglass Fabric Application-4

FAQ

Here are some common questions and answers. You can also contact us directly for assistance.

You can fill in your information in the form below and describe your intended use. Our engineers will provide you with samples that meet the corresponding performance and size requirements. Please note that we are a factory and do not provide retail services.

Customers need to pay the courier fee.

Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.

Within 5000 square meters: 7~15 days after deposit received.

5000~10,000 square meters: 15~25 days after deposit received.

More than 10,000 square meters: According to delivery terms.

Remark: Expected circumstances may lead to delivery delay, customer will be informed in time.

T/T, L/C, Paypal or Western Union.

Shanghai, Shenzhen or according to customer’s request.

OEM & ODM, Not Retailer

Contact us for material application solutions.
